Temperature- / Climatic Stress Screening Chambers
the latest generation with innovative technique and future-oriented design.

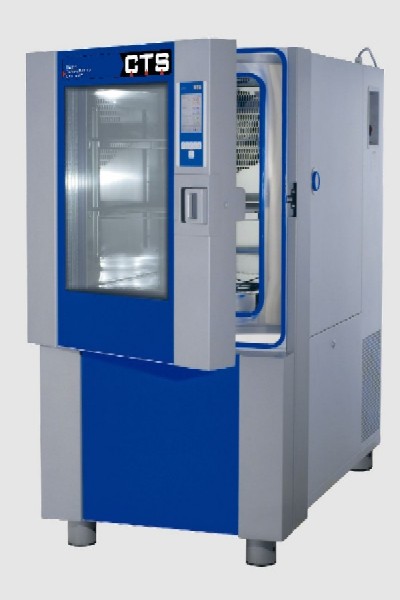

Standard version of the product line "TS/CS": | |
![]() |
multicolor touch panel / 32 Bit Controller |
![]() |
service-friendly capacitive humidity measurement system |
![]() |
RS 232 interface |
![]() |
potential free contact for malfunction signal |
![]() |
single-hand operated door handle, lockable |
![]() |
entry port ø 50 mm |
![]() |
display in plain text |
![]() |
shelf, stainless steel |
Your benefits: |
|
![]() |
complies with current CE and EMC regulation |
![]() |
use of environmentally friendly materials and refrigerants |
![]() |
minimum noise level |
![]() |
extremely high temperature change rates |
![]() |
simple user-friendly operation and programming |
![]() |
low power-consumption datas |
![]() |
service-friendly construction |
![]() |
optimized parameters for highest testing precision |
![]() |
demineralized water system with water-level gauge |
Test space capacity in liters: |
|
![]() |
5 K/min 200 / 350 / 600 / 1000 / 1500 |
![]() |
10 K/min and 15 K/min 200 / 350 / 500 / 810 / 900 / 1250 |
Temperature range: |
|
![]() |
-40 °C / +180 °C |
Design: |
|
Control: | microprocessor control and monitoring system |
Test space: | stainless steel grade 1.4301 |
Refrigerants: | chloride free, hermetically sealed |
Humidity system (only type CS): |
capacitive measuring |
Options: |
|
![]() |
add. entry ports ø 50 mm, 80 mm und 125 mm |
![]() |
add. shelves |
![]() |
panoramic window, multiple glazed, sized 570 x 710 mm |
![]() |
hand-hole in the door |
![]() |
add. Pt 100 for temperature measuring on test specimen alternative reversible to controller function |
![]() |
air dryer system |
![]() |
mobile design |
![]() |
temperature protection for test-specimen |
![]() |
water cooled compressor; external condenser |
![]() |
CID software for programming and documentation |
![]() |
variable air speed in the test space |
![]() |
RS 232 interface changeable to USB |
![]() |
ETHERNET interface RJ 45 |
Type | 5 K/min | |||||||
TS -40/…, CS -40/… TS -70/…, CS -70/… |
-40/200-5 -70/200-5 |
-40/350-5 -70/350-5 |
-40/600-5 -70/600-5 |
-40/1000-5 -70/1000-5 |
-40/1500-5 -70/1500-5 |
|||
Test Space | liters | 200 | 350 | 600 | 1000 | 1500 | ||
Test Space Dimensions | height | mm, appr. | 750 | 750 | 850 | 900 | 900 | |
width | mm, appr. | 650 | 650 | 850 | 1000 | 1000 | ||
depth | mm, appr. | 400 | 720 | 830 | 1100 | 1600 | ||
Overall Dimensions | height | mm, appr. | 1800 | 1800 | 1900 | 1950 | 1950 | |
width | mm, appr. | 920 | 920 | 1120 | 1270 | 1270 | ||
depth | mm, appr. | 1345 | 1665 | 1875 | 2245 | 2745 | ||
Temperature Tests | ||||||||
Temperature Range | TS -40/…, CS -40/… | °C | -40/+180 | -40/+180 | -40/+180 | -40/+180 | -40/+180 | |
TS -70/…, CS -70/… | °C | -70/+180 | -70/+180 | -70/+180 | -70/+180 | -70/+180 | ||
Temp. Change Rate Cooling |
TS -40/…, CS -40/… | K/min | 5,0 | 5,0 | 7,0 | 5,0 | 5,0 | |
acc. IEC 60068-3-5 | TS -70/…, CS -70/… | K/min | 5,0 | 5,0 | 7,0 | 5,0 | 5,0 | |
Temp. Change Rate Heating |
TS -40/…, CS -40/… | K/min | 8,0 | 8,0 | 6,0 | 6,0 | 5,0 | |
acc. IEC 60068-3-5 | TS -70/…, CS -70/… | K/min | 8,0 | 8,0 | 6,0 | 6,0 | 5,0 | |
max. Thermal Load at +20°C |
TS -40/…, CS -40/… | W | 3500 | 3500 | 4500 | 5000 | 6000 | |
TS -70/…, CS -70/… | W | 3500 | 3500 | 5000 | 5500 | 5000 | ||
Temperature Fluctuation | K | ≤± 0,3 temporally | ||||||
Climatic Tests | ||||||||
Temperature Range | CS -40/…, CS -70/… | °C | +10 to +95 | |||||
Humidity Range | CS -40/…, CS -70/… | % RH | 10 to 98 | |||||
Dew Point Range I | CS -40/…, CS -70/… | °C | +7 to +94 | |||||
Dew Point Range II | CS -40/…, CS -70/… | °C | -10 to +7 | |||||
Humidity Fluctuation I | CS -40/…, CS -70/… | % RH | ≤± 1,5 | |||||
Humidity Fluctuation II | CS -40/…, CS -70/… | % RH | ≤± 3 | |||||
Temperature Fluctuation | CS -40/…, CS -70/… | K | ≤± 0,3 | |||||
Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | |||||||
Nominal Power | TS -40/… | kW, appr. | 9,3 | 9,3 | 9,2 | 13,3 | 13,2 | |
CS -40/… | kW, appr. | 10,4 | 10,4 | 12,1 | 13,2 | 13,2 | ||
TS -70/… | kW, appr. | 10,9 | 10,9 | 14,2 | 16,4 | 16,4 | ||
CS -70/… | kW, appr. | 12,0 | 12,0 | 14,2 | 16,4 | 16,4 | ||
Condenser | air-cooled | water-cooled | ||||||
Weight | TS -40/…, CS -40/… | kg, appr. | 500 | 600 | 700 | 850 | 1000 | |
TS -40/…, CS -40/… | kg, appr. | 550 | 650 | 750 | 900 | 1100 | ||
Noise level | dB(A) | < 58 | < 58 | < 62 | < 62 | < 62 |
Type | 10 K/min | |||||||
TS -40/…, CS -40/… TS -70/…, CS -70/… |
-40/200-10 -70/200-10 |
-40/350-10 -70/350-10 |
-40/500-10 -70/500-10 |
-40/900-10 -70/900-10 |
-40/1250-10 -70/1250-10 |
|||
Test Space | liters | 200 | 350 | 500 | 900 | 1250 | ||
Test Space Dimensions | height | mm, appr. | 750 | 750 | 820 | 870 | 870 | |
width | mm, appr. | 650 | 650 | 850 | 1000 | 1000 | ||
depth | mm, appr. | 400 | 720 | 725 | 1000 | 1400 | ||
Overall Dimensions | height | mm, appr. | 1800 | 1800 | 2170 | 2230 | 2230 | |
width | mm, appr. | 920 | 920 | 1120 | 1270 | 1270 | ||
depth | mm, appr. | 1345 | 1665 | 2375 | 2645 | 3145 | ||
Temperature Tests | ||||||||
Temperature Range | TS -40/…, CS -40/… | °C | -40/+180 | -40/+180 | -40/+180 | -40/+180 | -40/+180 | |
TS -70/…, CS -70/… | °C | -70/+180 | -70/+180 | -70/+180 | -70/+180 | -70/+180 | ||
Temp. Change Rate Cooling |
TS -40/…, CS -40/… | K/min | 10,0 | 10,0 | 10,0 | 10,0 | 10,0 | |
acc. IEC 60068-3-5 | TS -70/…, CS -70/… | K/min | 11,0 | 10,0 | 10,0 | 10,0 | 10,0 | |
Temp. Change Rate Heating |
TS -40/…, CS -40/… | K/min | 12,0 | 10,0 | 10,0 | 10,0 | 10,0 | |
acc. IEC 60068-3-5 | TS -70/…, CS -70/… | K/min | 12,0 | 10,0 | 10,0 | 10,0 | 10,0 | |
max. Thermal Load at +20°C |
TS -40/…, CS -40/… | W | 5000 | 5000 | 7000 | 8000 | 8000 | |
TS -70/…, CS -70/… | W | 4000 | 5000 | 5500 | 8000 | 8000 | ||
Temperature Fluctuation | K | ≤± 0,3 temporally | ||||||
Climatic Tests | ||||||||
Temperature Range | CS -40/…, CS -70/… | °C | +10 to +95 | |||||
Humidity Range | CS -40/…, CS -70/… | % RH | 10 to 98 | |||||
Dew Point Range I | CS -40/…, CS -70/… | °C | +7 to +94 | |||||
Dew Point Range II | CS -40/…, CS -70/… | °C | -10 to +7 | |||||
Humidity Fluctuation I | CS -40/…, CS -70/… | % RH | ≤± 1,5 | |||||
Humidity Fluctuation II | CS -40/…, CS -70/… | % RH | ≤± 3 | |||||
Temperature Fluctuation | CS -40/…, CS -70/… | K | ≤± 0,3 | |||||
Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | |||||||
Nominal Power | TS -40/… | kW, appr. | 13,4 | 13,4 | 17,5 | 23,0 | 32,0 | |
CS -40/… | kW, appr. | 13,4 | 13,4 | 18,6 | 24,1 | 33,0 | ||
TS -70/… | kW, appr. | 16,6 | 16,6 | 20,3 | 26,0 | 37,0 | ||
CS -70/… | kW, appr. | 16,6 | 16,6 | 20,3 | 26,0 | 35,8 | ||
Condenser | water-cooled | |||||||
Weight | TS -40/…, CS -40/… | kg, appr. | 600 | 700 | 800 | 1000 | 1150 | |
TS -40/…, CS -40/… | kg, appr. | 650 | 750 | 900 | 1100 | 1300 | ||
Noise level | dB(A) | < 58 | < 58 | < 68 | < 68 | < 73 |
Type | 15 K/min | ||||||
TS -40/…, CS -40/… TS -70/…, CS -70/… |
-40/280-15 -70/280-15 |
-40/500-15 -70/500-15 |
-40/810-15 -70/810-15 |
-40/1250-5 -70/1250-15 |
|||
Test Space | liters | 280 | 500 | 810 | 1250 | ||
Test Space Dimensions | height | mm, appr. | 720 | 820 | 870 | 870 | |
width | mm, appr. | 650 | 850 | 1000 | 1000 | ||
depth | mm, appr. | 615 | 730 | 900 | 1400 | ||
Overall Dimensions | height | mm, appr. | 2080 | 2170 | 2230 | 2230 | |
width | mm, appr. | 920 | 1120 | 1270 | 1270 | ||
depth | mm, appr. | 2165 | 2375 | 2645 | 3145 | ||
Temperature Tests | |||||||
Temperature Range | TS -40/…, CS -40/… | °C | -40/+180 | -40/+180 | -40/+180 | -40/+180 | |
TS -70/…, CS -70/… | °C | -70/+180 | -70/+180 | -70/+180 | -70/+180 | ||
Temp. Change Rate Cooling |
TS -40/…, CS -40/… | K/min | 15,0 | 15,0 | 15,0 | 15,0 | |
acc. IEC 60068-3-5 | TS -70/…, CS -70/… | K/min | 15,0 | 15,0 | 15,0 | 15,0 | |
Temp. Change Rate Heating |
TS -40/…, CS -40/… | K/min | 15,0 | 15,0 | 15,0 | 15,0 | |
acc. IEC 60068-3-5 | TS -70/…, CS -70/… | K/min | 15,0 | 15,0 | 15,0 | 15,0 | |
max. Thermal Load at +20°C |
TS -40/…, CS -40/… | W | 5000 | 8000 | 8000 | 8000 | |
TS -70/…, CS -70/… | W | 5000 | 8000 | 8000 | 8000 | ||
Temperature Fluctuation | K | ≤± 0,3 temporally | |||||
Climatic Tests | |||||||
Temperature Range | CS -40/…, CS -70/… | °C | +10 to +95 | ||||
Humidity Range | CS -40/…, CS -70/… | % RH | 10 to 98 | ||||
Dew Point Range I | CS -40/…, CS -70/… | °C | +7 to +94 | ||||
Dew Point Range II | CS -40/…, CS -70/… | °C | -10 to +7 | ||||
Humidity Fluctuation I | CS -40/…, CS -70/… | % RH | ≤± 1,5 | ||||
Humidity Fluctuation II | CS -40/…, CS -70/… | % RH | ≤± 3 | ||||
Temperature Fluctuation | CS -40/…, CS -70/… | K | ≤± 0,3 | ||||
Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | ||||||
Nominal Power | TS -40/… | kW, appr. | 17,6 | 24,0 | 32,0 | 42,5 | |
CS -40/… | kW, appr. | 18,7 | 24,0 | 33,0 | 43,6 | ||
TS -70/… | kW, appr. | 21,2 | 27,4 | 37,1 | 46,8 | ||
CS -70/… | kW, appr. | 21,2 | 27,4 | 35,8 | 46,8 | ||
Condenser | water-cooled | ||||||
Weight | TS -40/…, CS -40/… | kg, appr. | 800 | 900 | 1100 | 1350 | |
TS -40/…, CS -40/… | kg, appr. | 900 | 1000 | 1200 | 1500 | ||
Noise level | dB(A) | < 68 | < 68 | < 73 | < 75 |

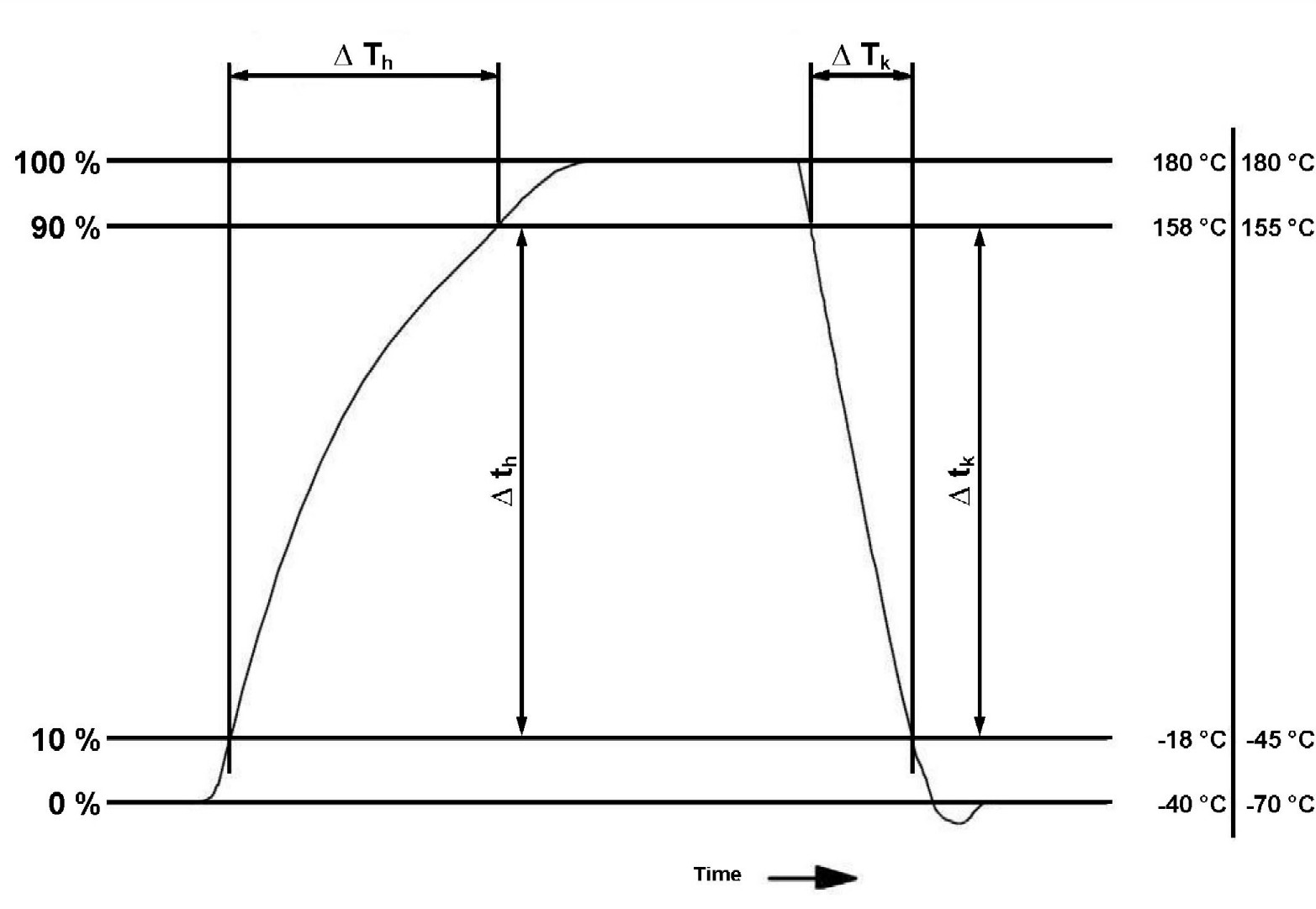

Temperature Change Rate acc. IEC 60068-3-5: | ||
heating | = | Δ th / Δ Th |
cooling | = | Δ tk / Δ Tk |
Δ Th = time of heating Δ Tk = time of cooling Δ th = temperature difference, heating Δ tk = temperature difference, cooling |
All figures are average values which have been obtained at a temperature of +25° C, without test specimens, without thermal load and without options.
We reserve the right to make alterations due to technical development.
Other chamber sizes and options on request.
